Product Name

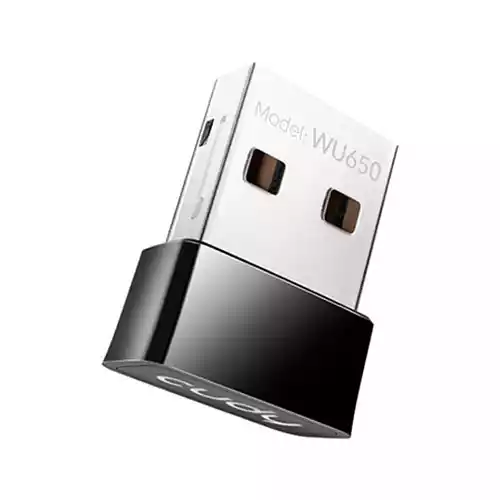

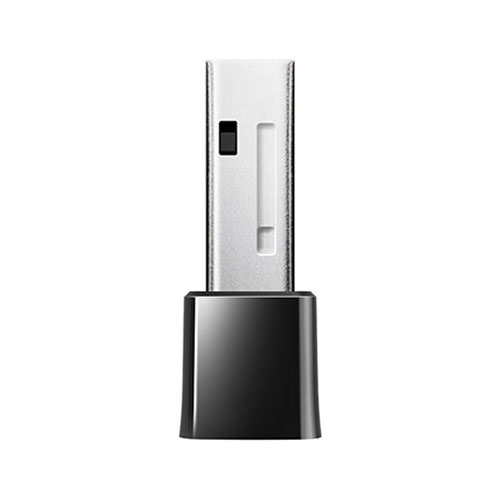

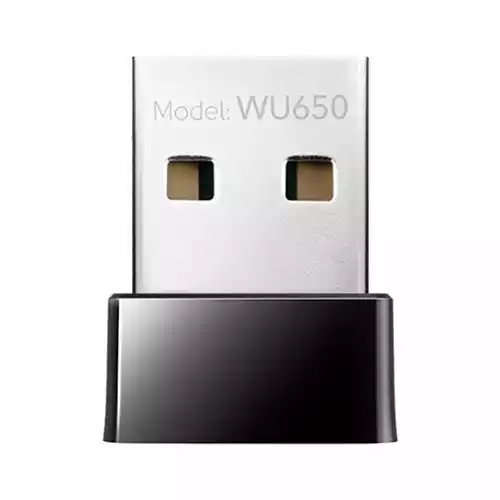

AC650 Wireless Dual Band Mini USB Adapter

Product Model

WU650

Antenna

Built in 2dBi Antenna

USB Port

USB2.0

Wireless Frequency

2.412~2.4835GHz, 5.180~5.825GHz

Wireless Standard

IEEE802.11a, IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ac

Transmission Rate

11b: 1/2/5.5/11Mbps; 11g: 6/9/12/18/24/36/48/54Mbps; 11n: 200Mbps; 11ac:433Mbps

Transmit Power

17dBm(max)

Encryption

WPA-PSK/WPA2-PSK; WPA/WPA2; WEP

Other Function

Soft AP function, need to install the driver with UI, or the third-party

software. (64bit system and win 10 are not support soft AP)

Physical Features

Size: 20*15*8mm; Weight: 3g

Support OS

Windows XP / Vista / 7 / 8 / 8.1 / 10; Don’t support free drive; MacOS10.6~MacOS10.15;

Working Environment

Working Temperature: 0 ℃ ~40 ℃; Storage Temperature: -40 ℃~70 ℃;

Working Humidity: 10%~90%RH Non-condensing; Storage Humidity: 5%~90%RH Non-condensing

Package Content

1* Wireless Adapter; 1*Quick Installation Guide; 1*Resource CD
